TG Series
Overview Technical Data

Efficient Tube Fiber Laser Cutting Machine

TG series is an economical laser pipe cutting machine, with the characteristics of simple operation and easy to use, which is widely used in fitness equipment, fence partition, advertising industry, office furniture, medical equipment, metal processing and other industries.

Wide range of cutting applications

Suitable for a variety of cutting conditions, can be for all kinds of complex patterns of pipe cutting or cutting.

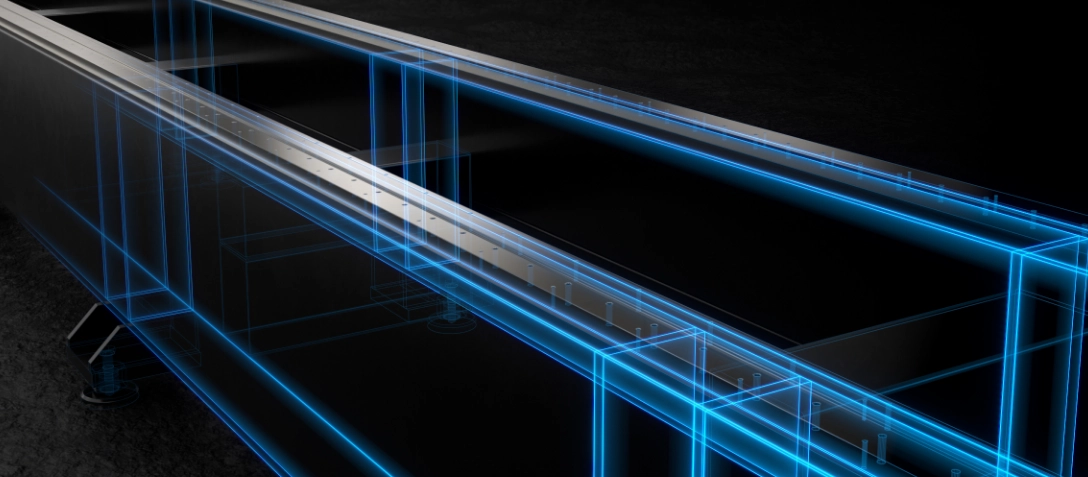

High rigidity horizontal bed

High rigidity horizontal bed structure, bearing heavy, high-speed cutting more stable.

Safety protection design

Enclosed cutting area protection, reduce cutting residue splash, protect the safety of operators

We are World Leading Consulting Firm

Very short tails
Noninductive perforation

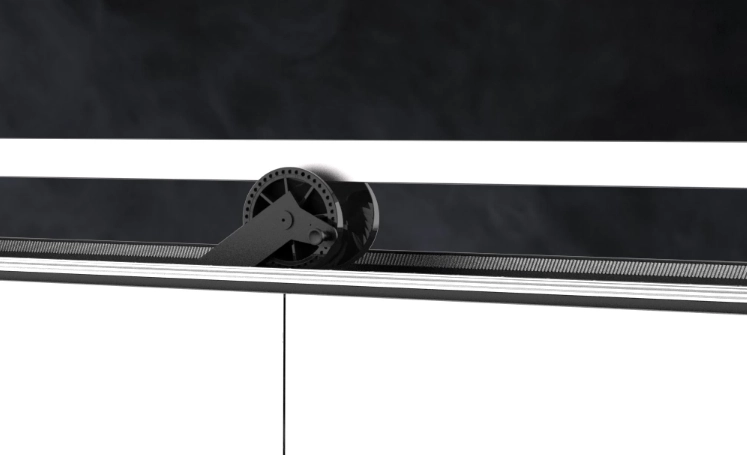

Concave wheel support

Technical Parameter

TG6012

TG6016

TG6020

TG6035

Power 1.5-3kW
Max. Raw Material Length 6300mm
Round Tube Diameter Φ10-Φ120mm
Square Tube Side Length □10*10-□120*120mm
Max. Acceleration 1.5G
Power 1.5-3kW
Max. Raw Material Length 6300mm
Round Tube Diameter Φ15-Φ160mm
Square Tube Side Length □15*15-□160*160mm
Max. Acceleration 1.5G
Power 1.5-6kW
Max. Raw Material Length 6300mm
Round Tube Diameter Φ15-Φ230mm
Square Tube Side Length □15*15-□230*230mm
Max. Acceleration 1.5G
Power 3-12kW
Max. Raw Material Length 6300mm
Round Tube Diameter Φ15-Φ350mm
Square Tube Side Length □15*15-□350*350mm
Max. Acceleration 0.8G

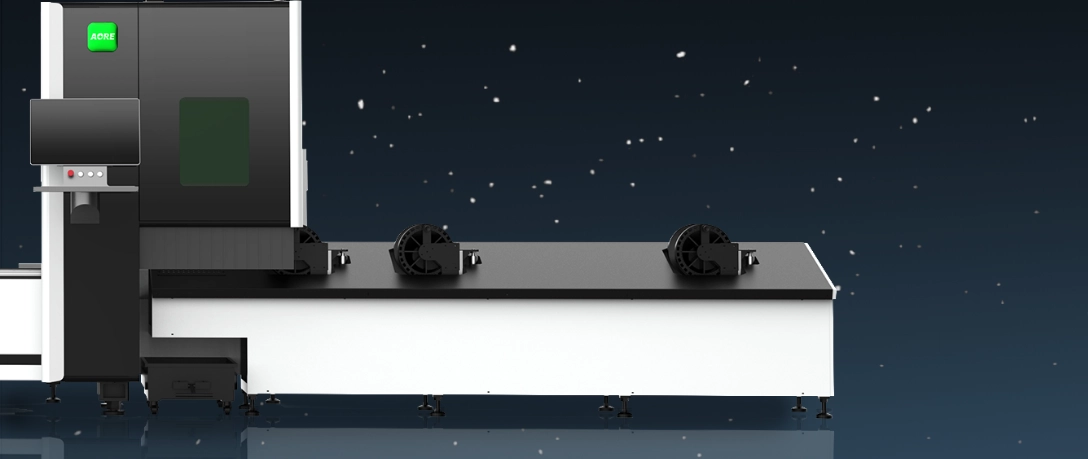

Optional

Discharge rack

2/3 meters unloading rack is optional to improve production efficiency

Weld identification

Precise positioning of the weld makes the cutting workpiece more beautiful.

Our products are suitable for the industry

Our products are widely used in engineering machinery, petroleum pipeline, steel structure construction, building materials decoration, elevator manufacturing, fitness equipment, furniture kitchen and bathroom, advertising road signs and other industries.

5-Year Warranty

  • Aore Core
  • Intelligent Control System

    Intelligent scheduling with well-coordinated arrangements.
  • Aore Power
  • Photoelectric conversion is more efficient

    Low power consumption, strong heat dissipation, anti-high reaction.
  • Aore Sword
  • Intelligent transmission, efficient protection

    Make cutting more efficient.
